Portable Veterinary DR X-Ray Table with Digital Flat Panel Detector for Pet Clinics & Animal Hospitals
Designed for modern veterinary clinics, pet hospitals, and mobile diagnostic services, the DYX Portable Veterinary DR X-Ray Table System delivers fast, high-resolution digital imaging with stable performance and easy operation. The compact design, lightweight portable X-ray generator, and high-quality flat panel detector allow veterinarians to perform efficient examinations for small animals, pets, and orthopedic diagnosis.
Ideal for veterinary hospitals, animal clinics, emergency diagnosis, and mobile imaging applications.
Main Product Features

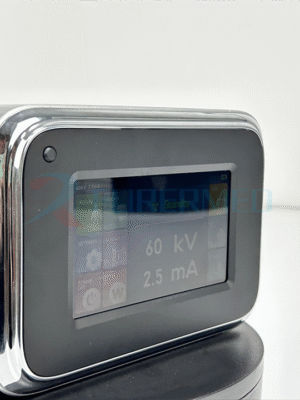

High-Frequency Portable X-Ray Generator
- Stable 5kW high-frequency output
- Adjustable voltage range from 40kV to 125kV
- Exposure time from 1ms to 4000ms
- Lightweight portable design only 15kg
- Fast imaging with low radiation dose
Veterinary DR Imaging System
- High-resolution flat panel detector
- Amorphous silicon and cesium iodide technology
- Clear bone and soft tissue imaging
- Fast digital image acquisition
- Suitable for cats, dogs, and small animals
Professional Veterinary Workstation
- User-friendly imaging software
- Image enhancement and processing functions
- Support image storage and export
- Efficient workflow for veterinary diagnosis

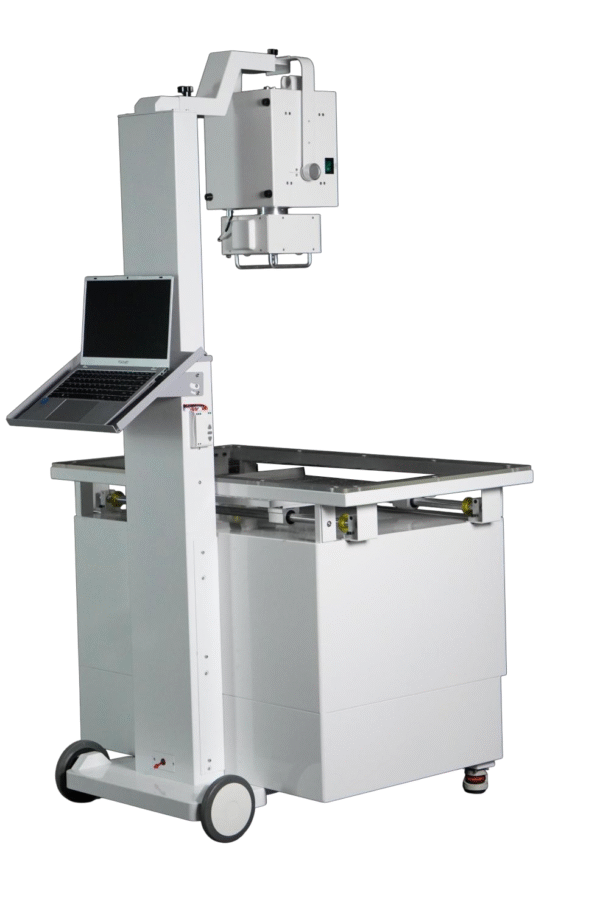

Durable Veterinary X-Ray Table
- Stable structure for animal positioning
- Smooth tabletop for easy cleaning
- Suitable for veterinary clinics and hospitals
- Optimized for portable DR systems
Technical Specifications
Portable High-Frequency X-Ray Machine
| Parameter | Specification |
|---|---|
| Power Supply | Single-phase 220V ±22V, 50Hz/60Hz |
| Maximum Output Power | 5kW |
| Tube Voltage Range | 40kV – 125kV |
| Tube Current Range | 10mA – 100mA |
| Exposure Time | 1ms – 4000ms |
| mAs Range | 0.1 – 200mAs |
| X-Ray Tube Heat Capacity | 35kJ |
| Beam Limiter | 450mm × 450mm |
| Machine Size | 297 × 239 × 230 mm |
| Weight | 15kg |
Flat Panel Detector
| Parameter | Specification |
| Detector Type | Amorphous Silicon / Cesium Iodide |
| Active Area | 430 × 430 mm |
| Pixel Pitch | 140μm |
| Spatial Resolution | 3.6 lp/mm |
| Image Size | 3072 × 3072 pixels |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet |
Applications
- Veterinary hospitals
- Pet clinics
- Animal diagnostic centers
- Mobile veterinary services
- Orthopedic examinations
- Emergency animal imaging
- Small animal diagnosis
Product Advantages
Fast Digital Imaging
Acquire high-quality diagnostic images within seconds to improve clinical efficiency.
Portable & Space Saving
Compact portable X-ray generator design makes the system suitable for small clinics and mobile applications.
Clear Veterinary Diagnosis
High-resolution detector technology provides sharp and detailed images for accurate diagnosis.
Easy Operation
User-friendly software interface allows veterinarians to quickly perform examinations and image processing.
Reliable Performance
Stable high-frequency output ensures consistent imaging quality during daily veterinary use.
