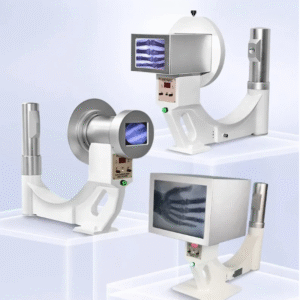

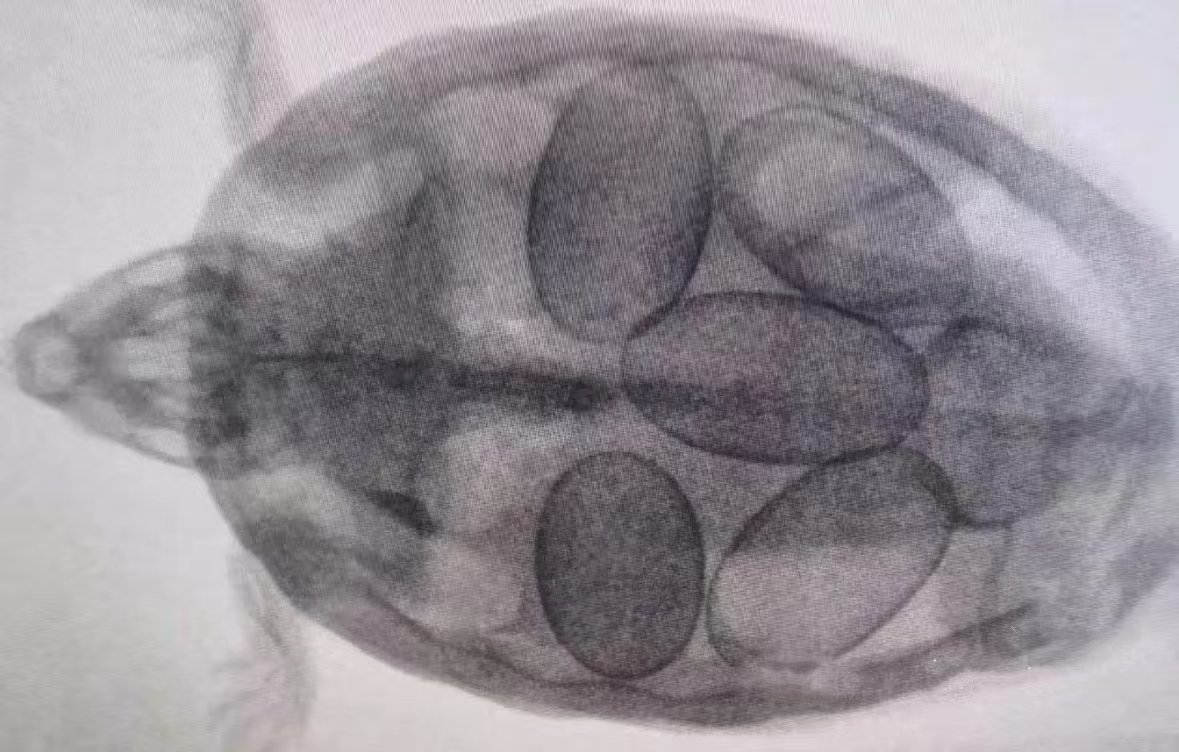

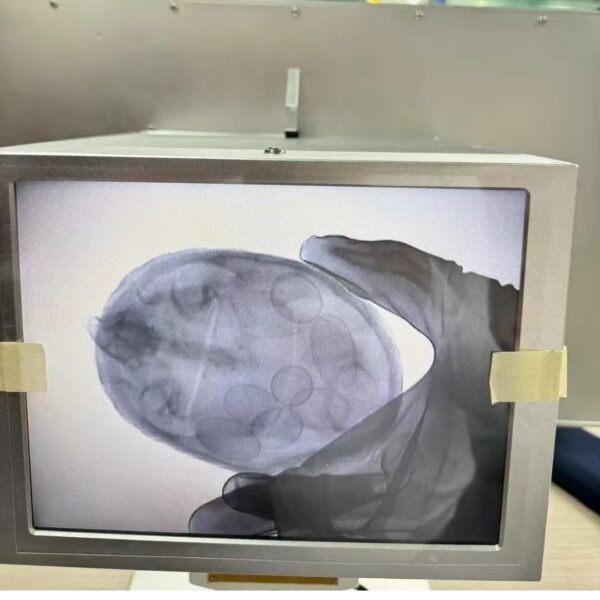

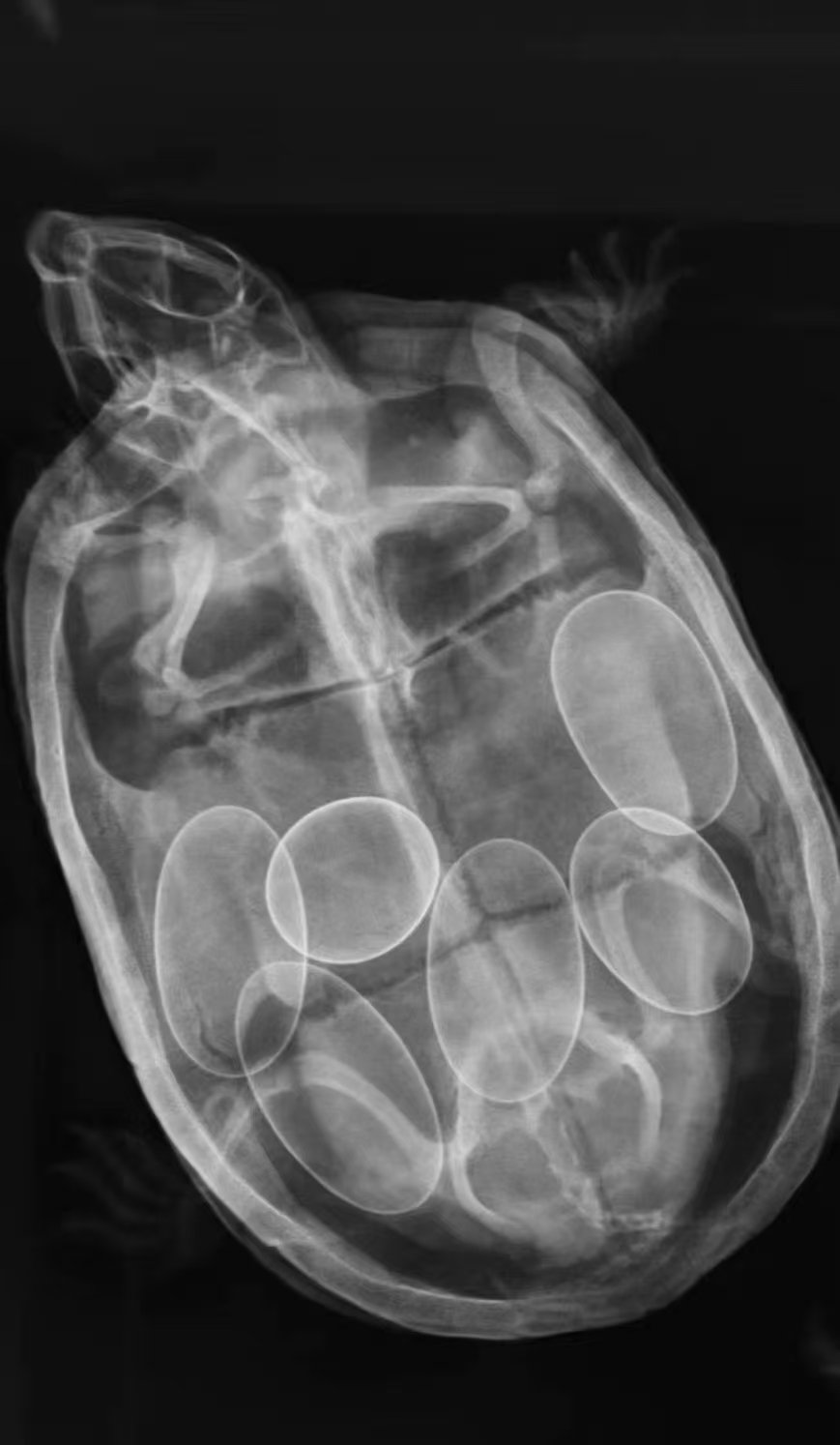

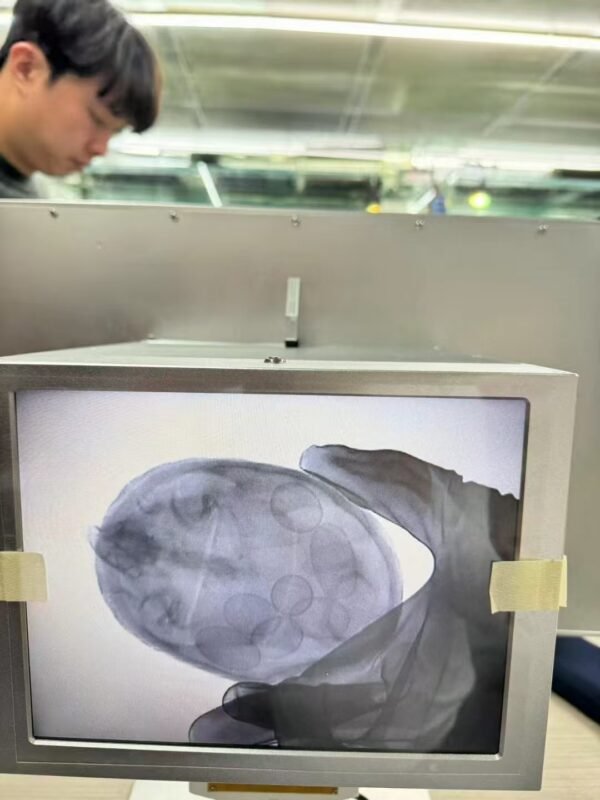

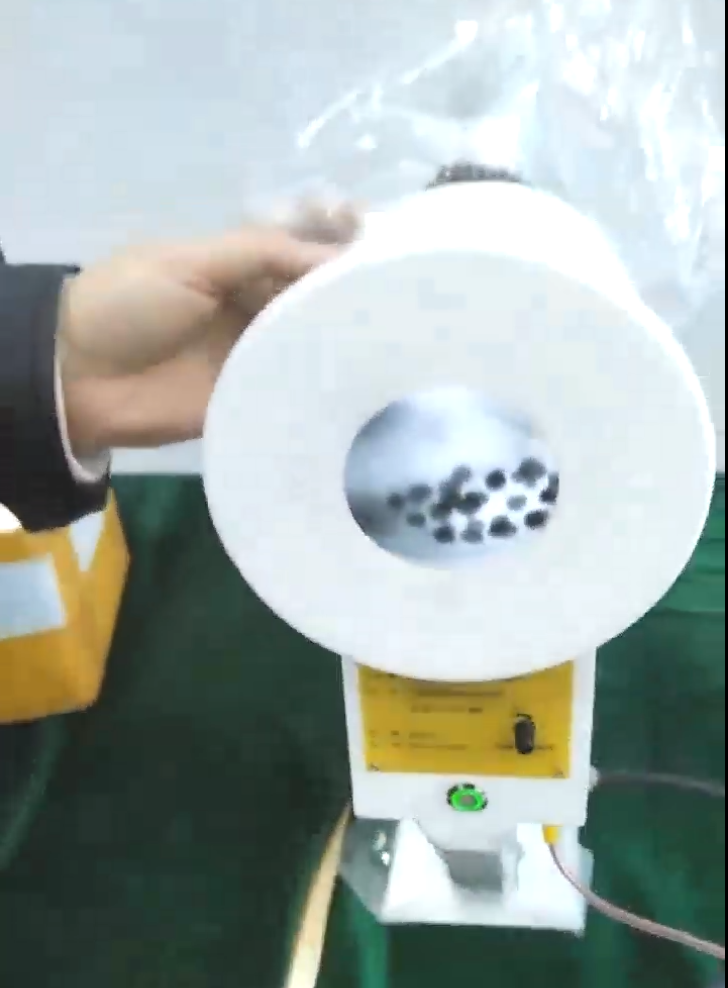

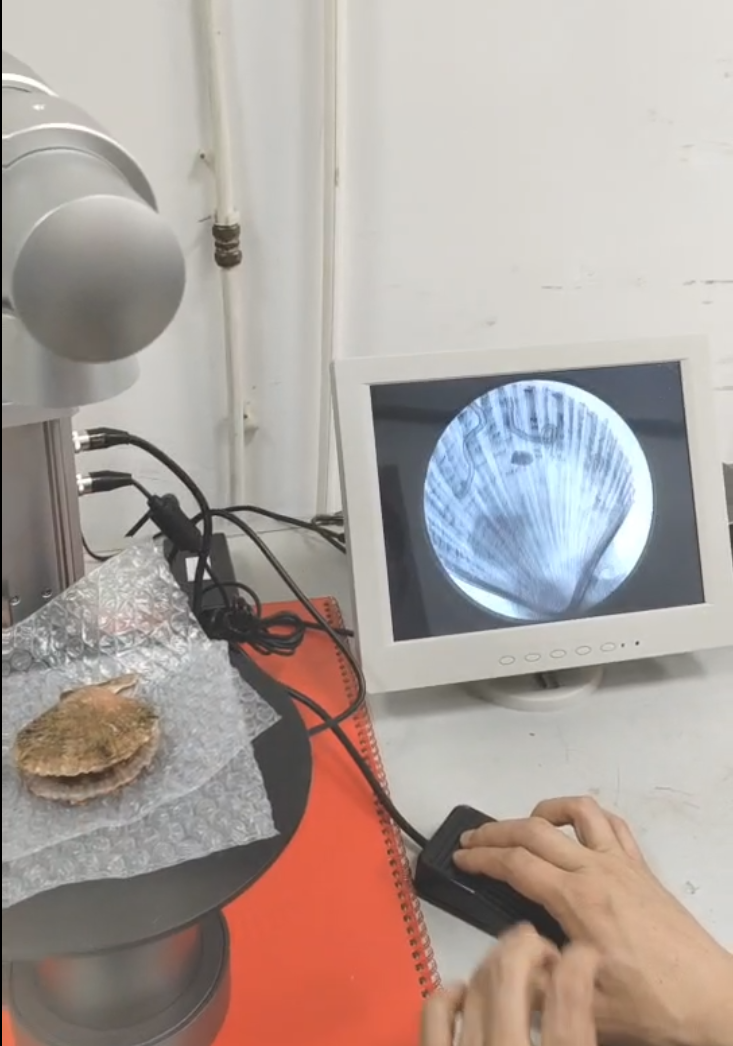

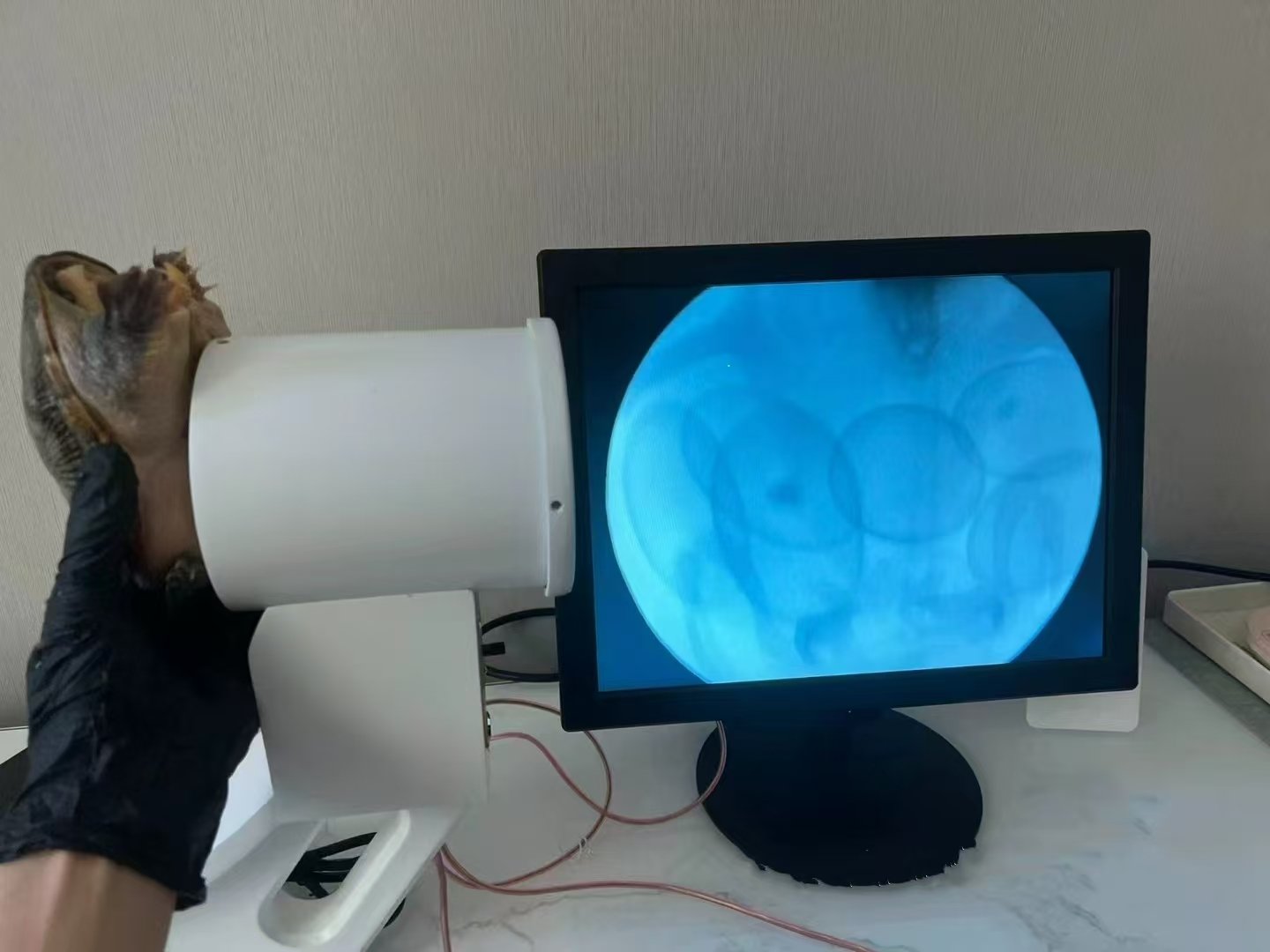

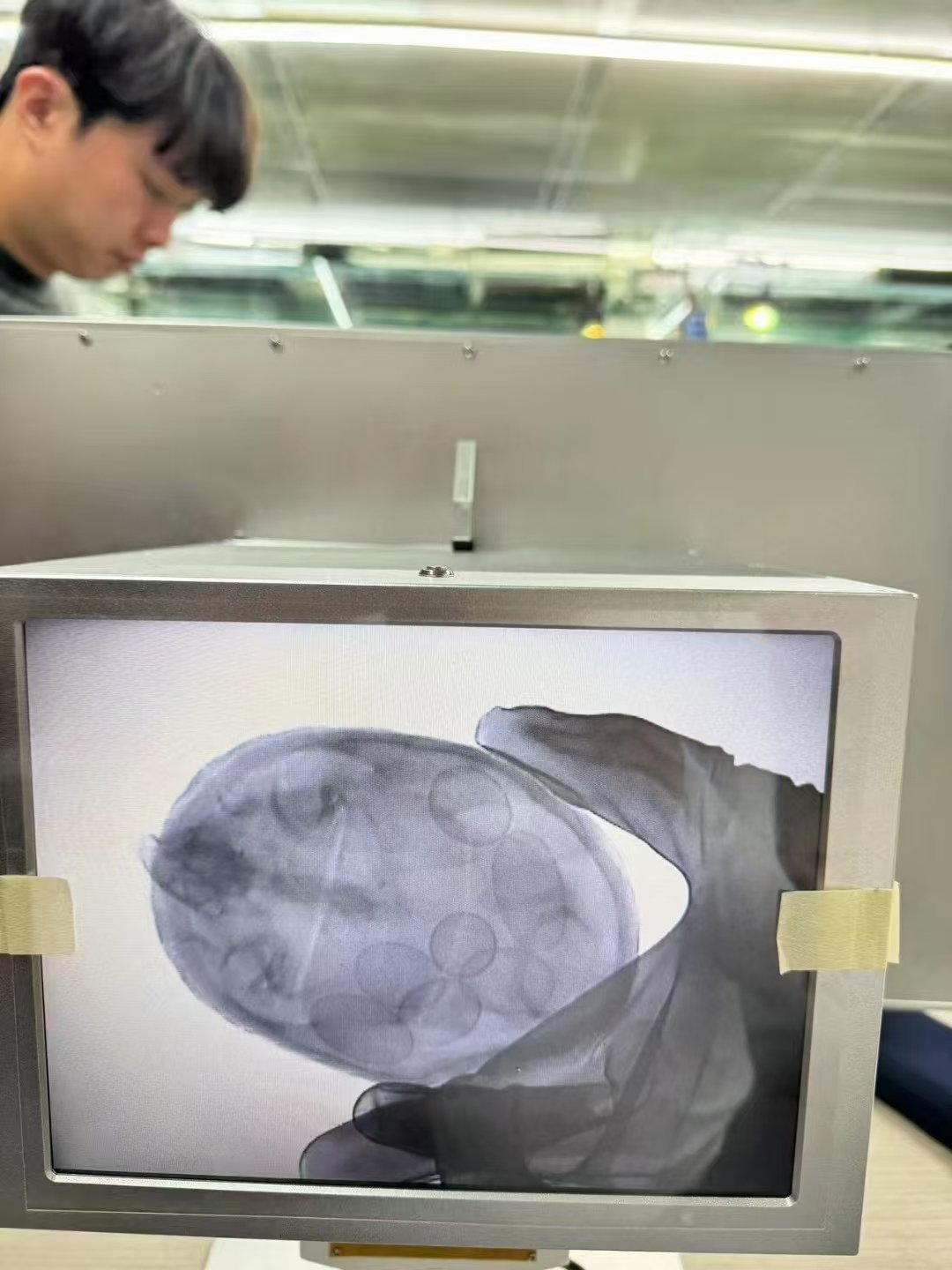

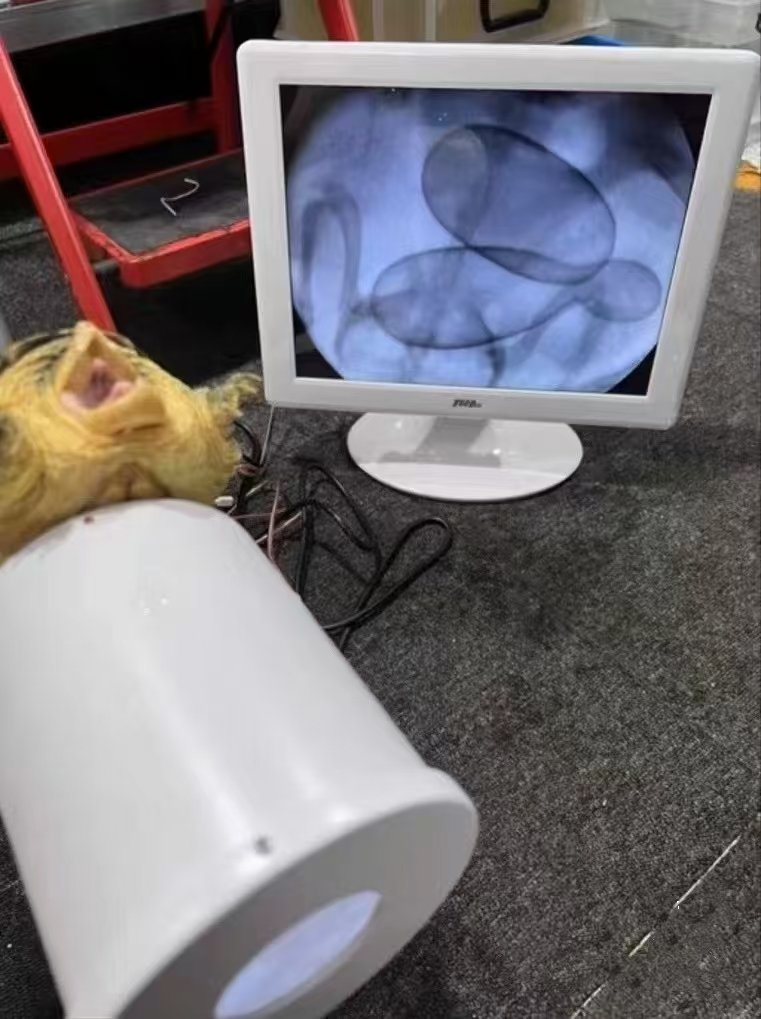

Industrial Portable X Ray Machine for Pearls, turtle eggs Fluoroscope machine

(1 条用户评价)

$3,500.00

Working Principle/OrganizationStructure
It uses X-ray to penetrate the measured object. The image of the internal structure of the object being measured is displayed on the LCD screenin front of the X-ray receiver. It consists of high voltage generator, X ray tube, X-ray receiver, beam, frame, adapter et.Scope of Application
Our portable x-ray machines are designed specifically for Medical clinic, podiatry clinic, nursing center, private doctor, surgical center, orthopedic center, team doctor,veterinary practices, providing fast and Whether you are in the clinic or making house calls, this lightweight device ensures you can provide high-quality care anytime, anywhere
Key Features:
Portability: Ideal for doctors on the move, providing flexible care wherever needed.
High-Quality Imaging: Delivers clear, detailed images for precise diagnoses.
Computer Connectivity: Easily connects to computers for quick image transfer and storage.
Image Printing: Facilitates immediate printing for patient consultations.
Reliable Detection Performance

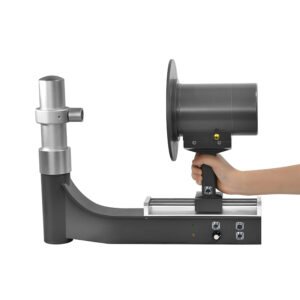

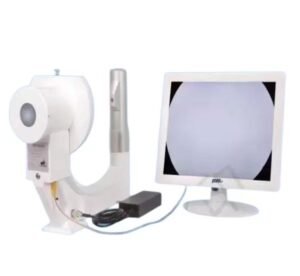

Portable X-ray​ Machine
Key Features:
Portability: Ideal for doctors on the move, providing flexible care wherever needed.
High-Quality Imaging: Delivers clear, detailed images for precise diagnoses.
Computer Connectivity: Easily connects to computers for quick image transfer and storage.
Image Printing: Facilitates immediate printing for patient consultations.
Reliable Detection Performance
Our portable x-ray machines are designed specifically for Medical clinic, podiatry clinic, nursing center, private doctor, surgical center, orthopedic center,

team doctor,veterinary practices, providing fast and Whether you are in the clinic or making house calls, this lightweight device ensures you can provide high-quality care anytime, anywhere
Performance parameters:DYX-607
Technical performance: Effective field of view 105 m m × 105 m m tube electric pressure selection range 45 kV ~ 90 kV manual continuous adjustable mode Tube voltage error -10% tube

current selection range 0. 2 5 to 0. 5 m A Continuously adjustable Tube current error -20% image resolution ≥ 50 l p/cm Gray level ≥ 7 contrast degree 4% Display screen brightness ≥ 100 c d/m 2 X-ray leakage rate ≤ 1.0 m G y/h
Environmental conditions Temperature 10 ℃ ~ 40℃ phase humidity ≤ 75% Atmospheric pressure 700 hpa ~ 100 hpa
power source conditions Power supply voltage A C 2 20 V Power supply frequency 50 H z ± 1 H z Input power rate ≤ 200VA Maximum allowable value of power grid resistance 0.5 Ω Power supply network overcurrent release device 1 A

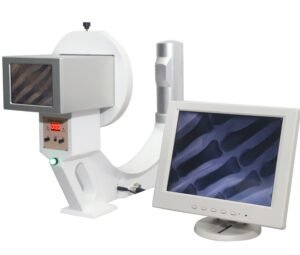

4external size and weight Length × width × thickness 5 40 × 420 × 160 (m m) Main machine 5 K g Gross weight 11.5K Function description: LCD imaging, built-in CCD camera imported from Japan, with fixing function; Equipped with U S B interface, through The data line is connected with the brain, and the collection of images and visual frequency can be realized.
Low-dose portable X-ray machine is the first high-tech product developed by our unit, and is the smallest X-ray diagnostic equipment at home and abroad

.
